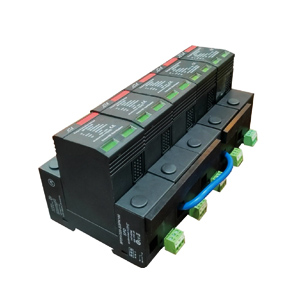

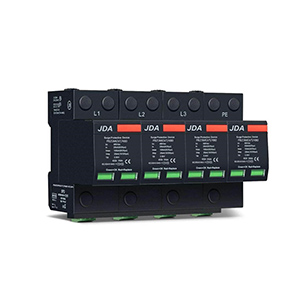

文件名稱PB25MGVT/960-R/3PI (5P)產品說明此結構在PE多串聯一個SPD模塊，MOV+GDT VT技術，每個SPD模塊Iimp 25kA，如L1-PE2一回路二顆25KA串接。L1-PE/L2-PE/L3-PE:分別有2個SPD模塊串聯而成 （Uc 480V+ 480V=960V）480V=960V）
文件名稱PB25MGVT/960-R/3PI產品說明此結構在PE多串聯一個SPD模塊，每個SPD模塊Iimp 25kA，如L1-PE2一回路二顆25KA串接。L1-PE/L2-PE/L3-PE:分別有2個SPD模塊串聯而成 （Uc 480V+ 480V=960V）480V=960V）

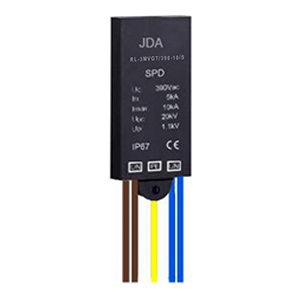

文件名稱SURGE ARRESTERS FOR LED STREET LIGHT RL-3MVGT/390-10/S LED路燈用SPD 產品說明SURGE ARRESTERS FOR LED STREET LIGHT RL-3MVGT/390-10/S LED路燈用SPD

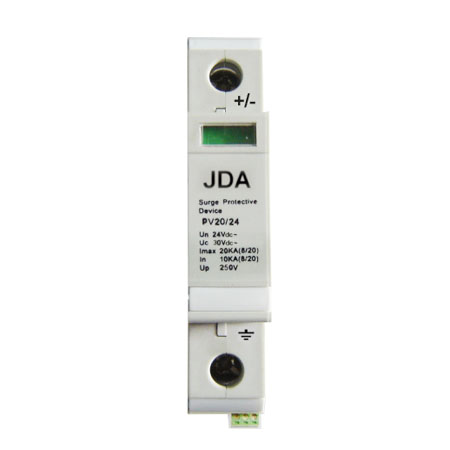

文件名稱太陽能突波吸收器PV20/24-MV-R產品說明組合波8/20us, In/Imax. 10/20KA，最大連續使用電壓（DC）30VDC, 額定電壓24VDC,電壓保護水平250V, 阻燃UL94-V0, 溫域-40~+80℃

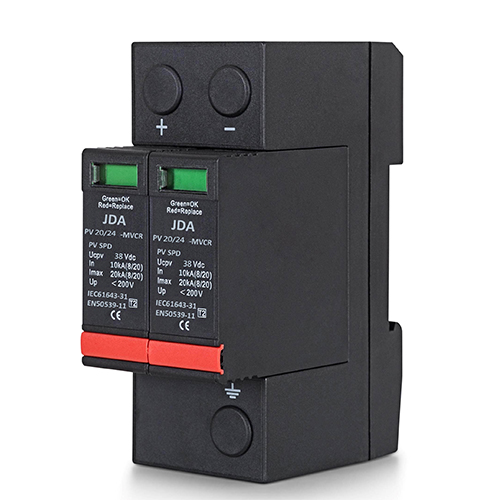

文件名稱PV20/xx-MVCR產品說明Type 2 surge arrester designed for low voltage DC system against surges at the boundaries from lightning protection zone 0B-2and higher. ◎ In accordance with IEC61643-11 and UL1449-4th ◎ DC SPD for common mode protection ◎ Pluggable module design, easy replacement ◎ High discharge current 20kA 8/20 ◎ Reliable supervision due to disconnection device; ◎ Fault indication by red indication flag in window; ◎ With remote alarm terminal optional;
文件名稱PV20/48-MVCR產品說明組合波8/20us, In/Imax. 10/20KA，最大連續使用電壓（DC）56Vdc, 額定電壓48Vdc,電壓保護水平280V, 阻燃UL94-V0, 溫域-40~+80℃

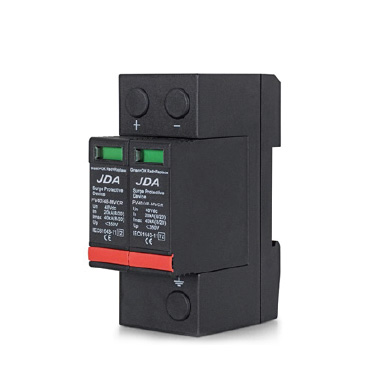

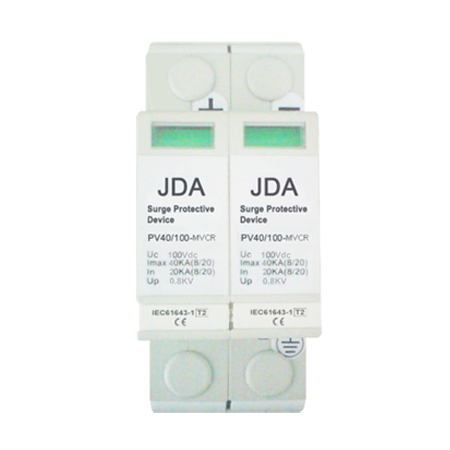

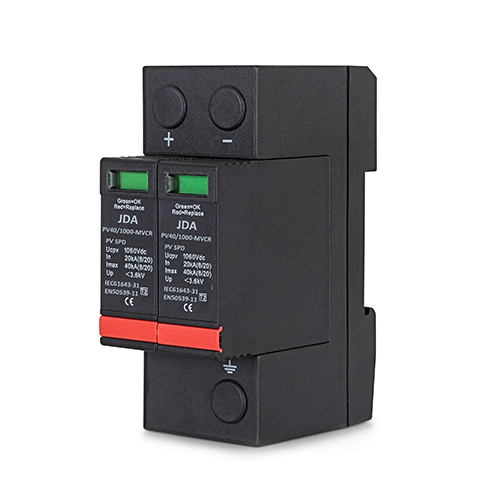

文件名稱PV40/(48-100)-MVCR產品說明PV40/(48-100)-MVCR In accordance with EN50539, IEC61643-11 and UL1449-4th DC SPD for common mode protection Pluggable module design, easy replacement High discharge current 40kA 8/20 Reliable supervision due to disconnection device Fault indication by red indication flag in window With remote alarm terminal optional

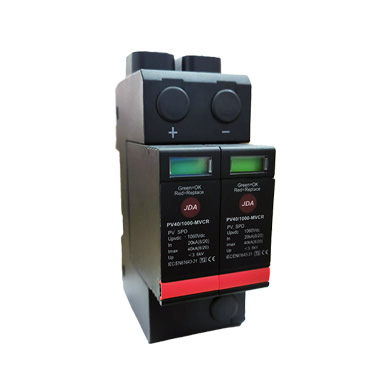

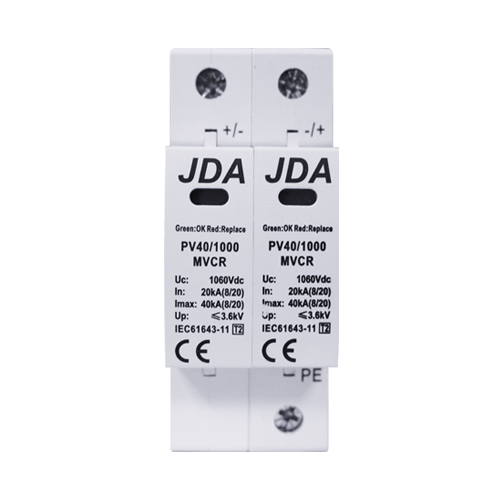

文件名稱PV40/1000-MVCR(黑外殼)產品說明增加端子隔離圈（terminal baffle）, 罩住接線端子裏的金屬，增加爬電距離,符合IEC61643-31和 UL1449 第5版的DC PV SPD標準

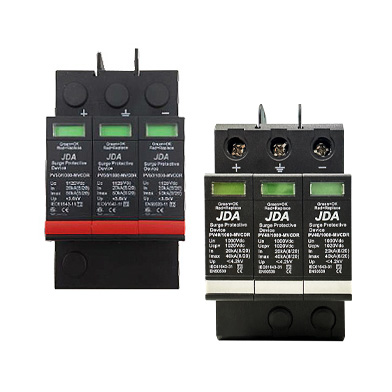

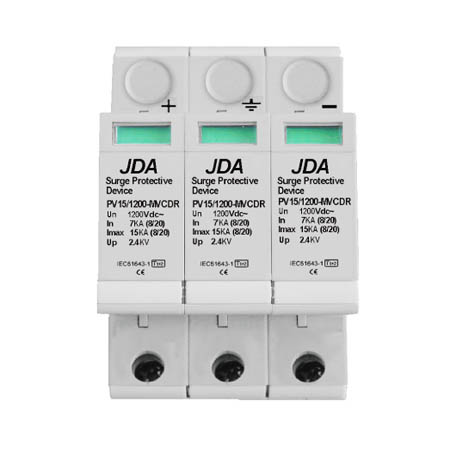

文件名稱PV15/1200-MVCDR產品說明組合波8/20us, In/Imax. 7/15KA，最大連續使用電壓（DC）1220VDC, 額定電壓1200VDC, 阻燃UL94-V0, 溫域-40~+80℃

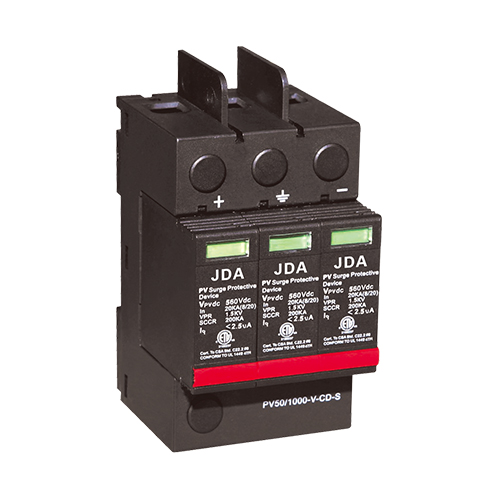

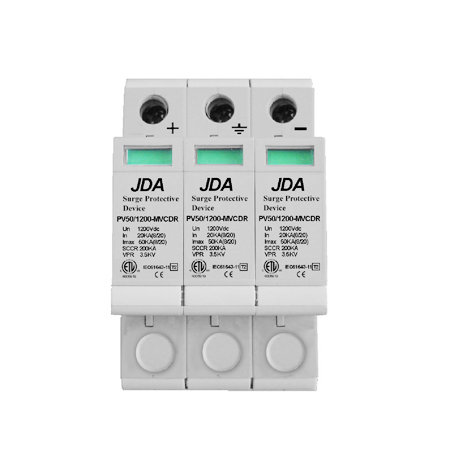

文件名稱PV50/1200-MVCDR產品說明組合波8/20us, In/Imax. 20/40KA，最大連續使用電壓（DC）1240VDC, 額定電壓1200VDC,電壓保護水平4.8KV, 阻燃UL94-V0, 溫域-40~+80℃

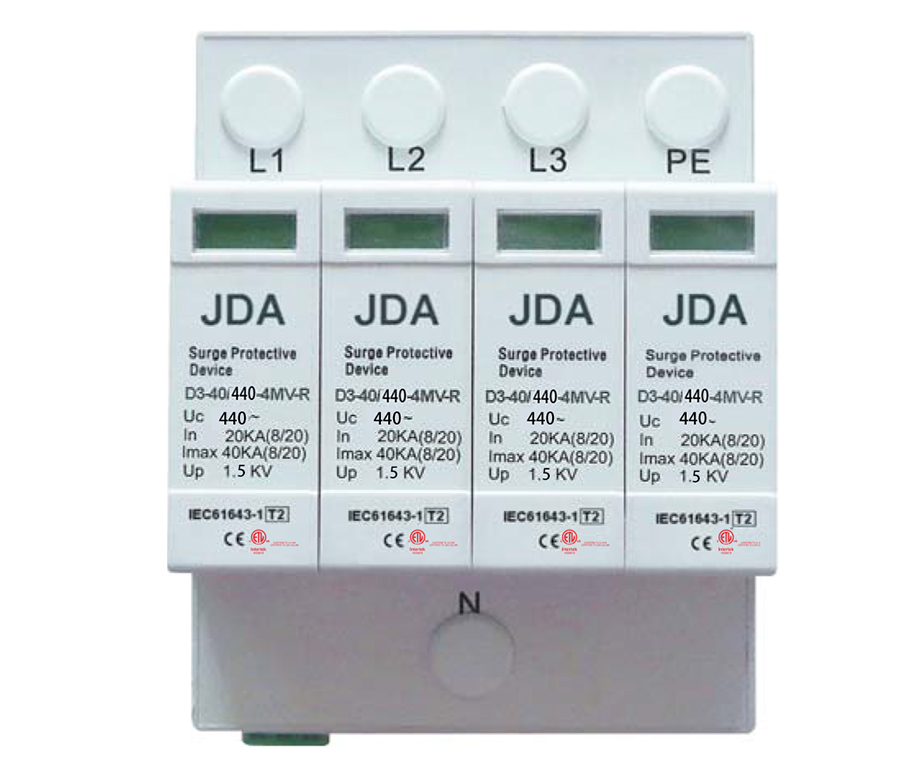

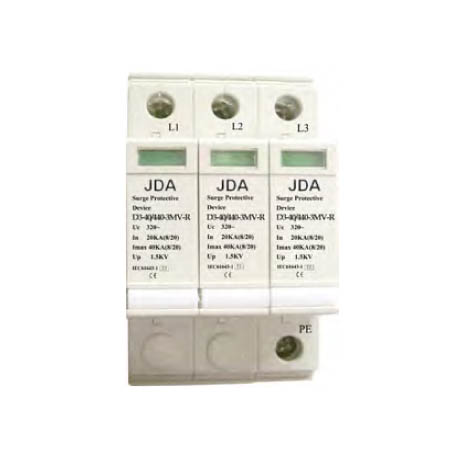

文件名稱D3-40/440-3MV-R產品說明JDA電力突波吸收器 組合波8/20us, In/Imax. 5/10KA，最大連續使用電壓（DC）DC 8, 額定電壓DC5,電阻燃UL94-V0, 溫域-25~+70℃

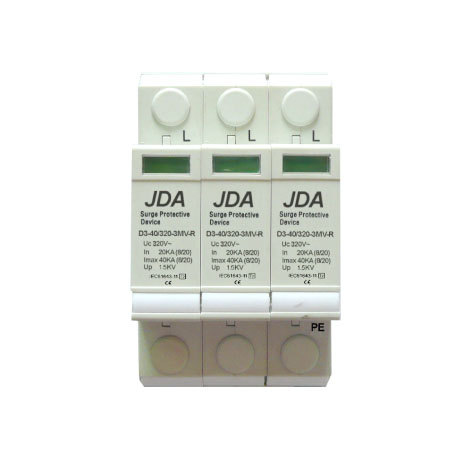

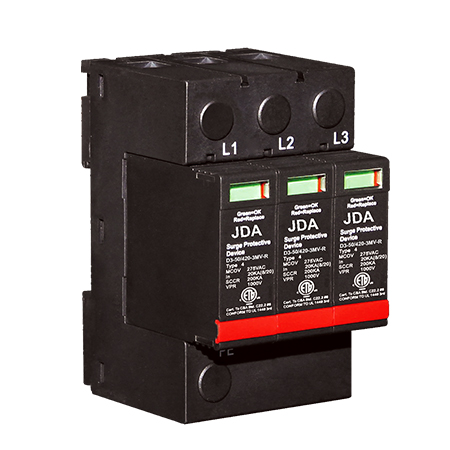

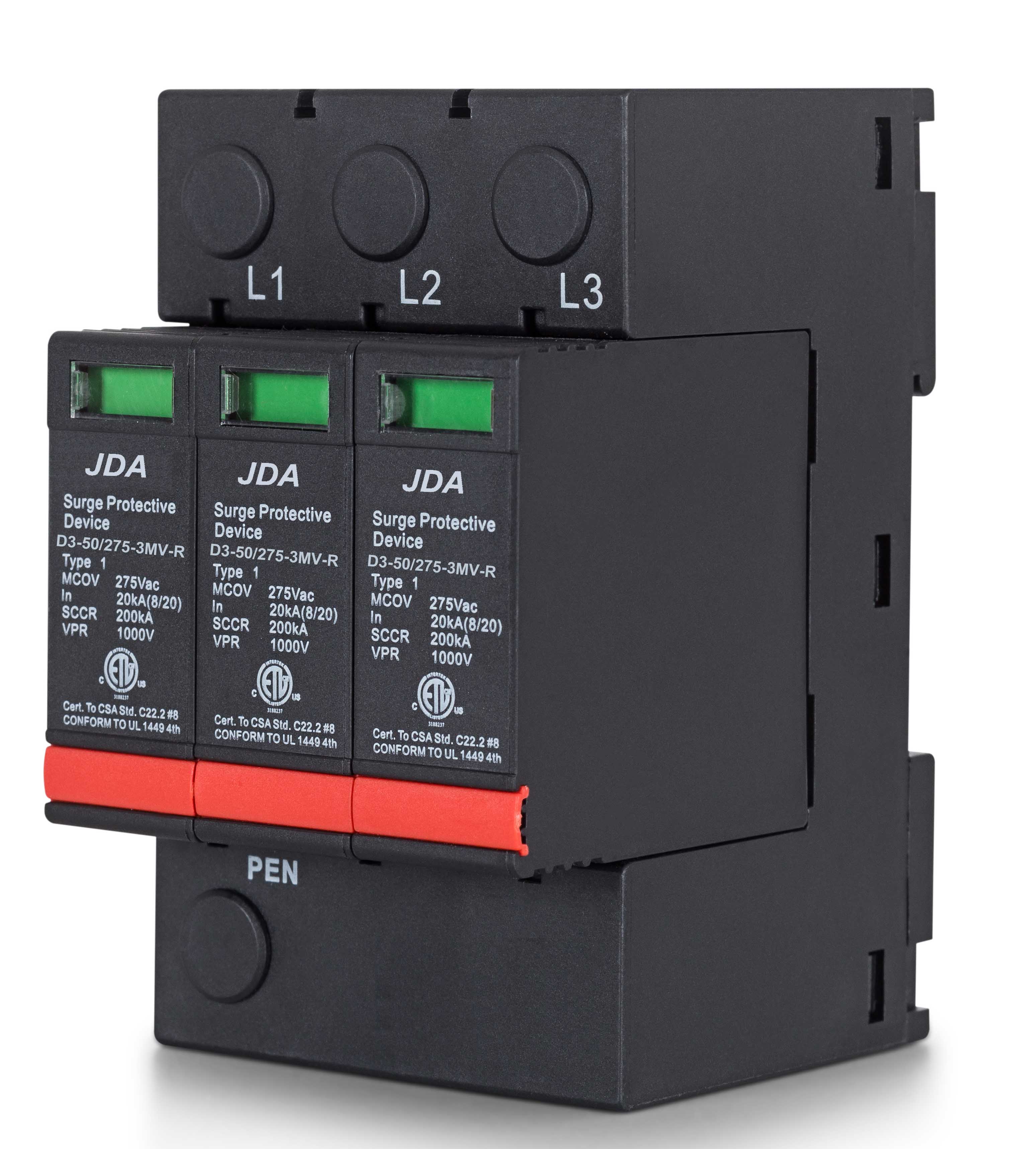

文件名稱D3-50/320-3MV-R產品說明JDA電力突波吸收器組合波8/20us, In/Imax. 20/50KA，最大連續使用電壓（AC/DC）320/420, 阻燃UL94-V0, 溫域-40~+80℃

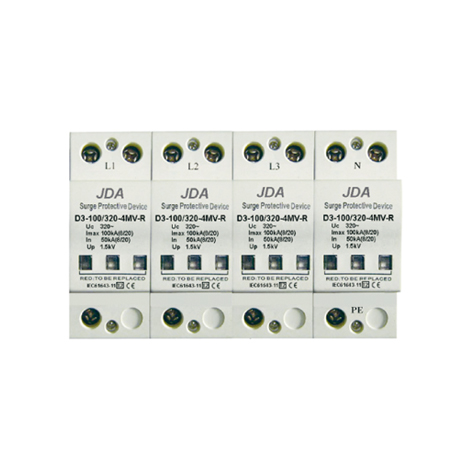

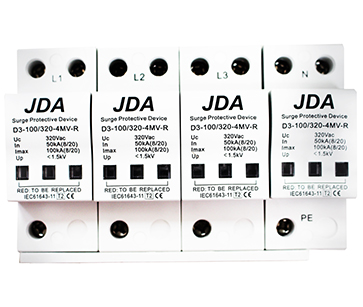

文件名稱 JDA電力突波吸收器D3-100/320-4MV(-R) 產品說明 組合波8/20us, In/Imax. 40/80KA，最大連續使用電壓（AC/DC）385/505, 溫域-40~+80℃

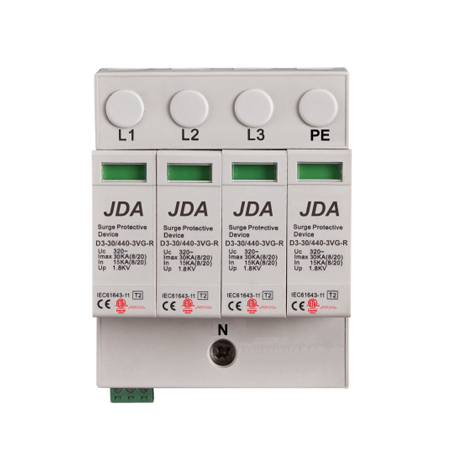

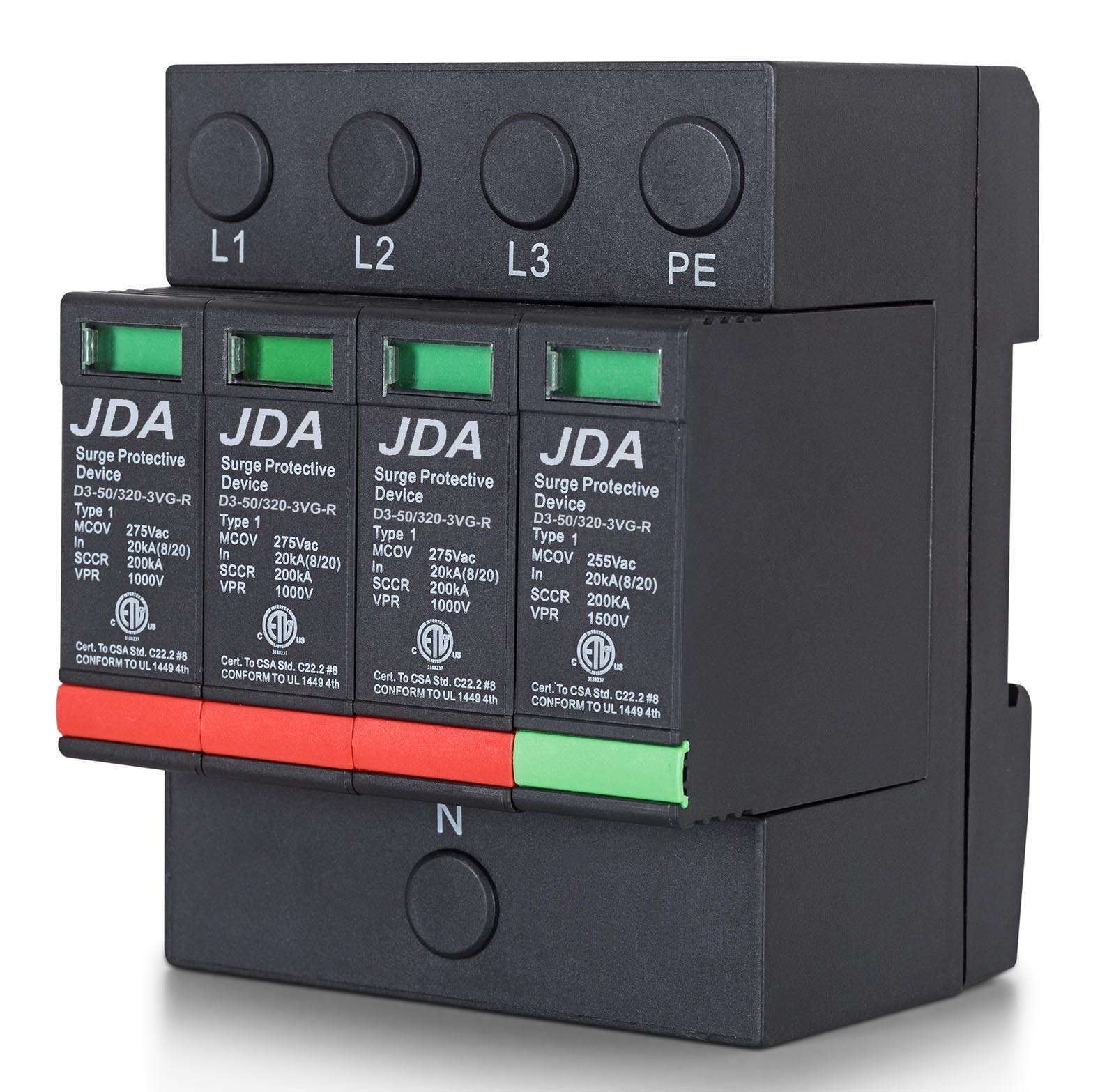

文件名稱D3-50-(150-550)-3VG-R產品說明突波保護器(或稱突波吸收器), 組合波8/20us, In/Imax.UL1449-4th, 最大連續使用電壓（AC/DC）550 /710, 阻燃UL94-V0, 溫域-40~+80℃,

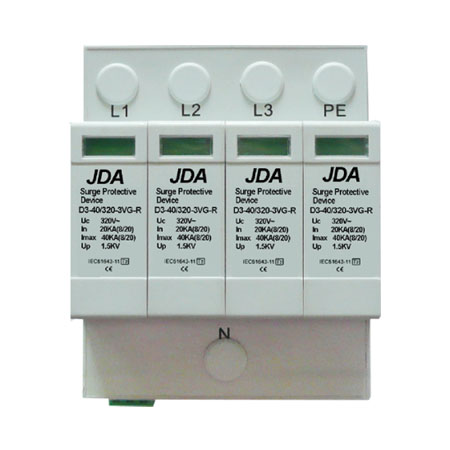

文件名稱D3-50/320-3VG-R產品說明組合波8/20us, In/Imax.IEC61643-11:2011 20/40KA:UL1449 3rd 20/50KA，最大連續使用電壓（AC/DC）320/420,阻燃UL94-V0, 溫域-40~+80℃
文件名稱RLMV20/150產品說明組合波8/20us, In/Imax. 10/20KA，最大連續使用電壓（DC）200VDC, 額定電壓20VDC,電壓保護水平250V, 阻燃UL94-V0, 溫域-40~+80℃太陽能突波吸收器

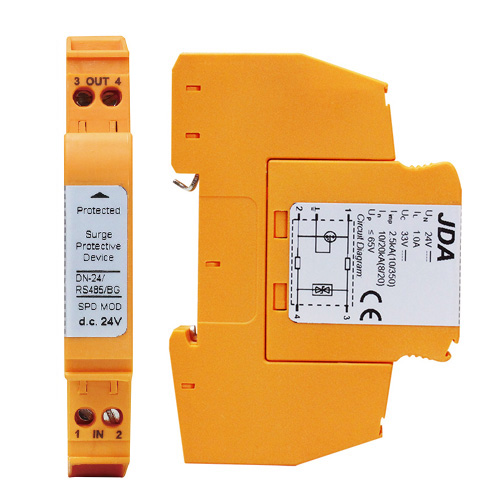

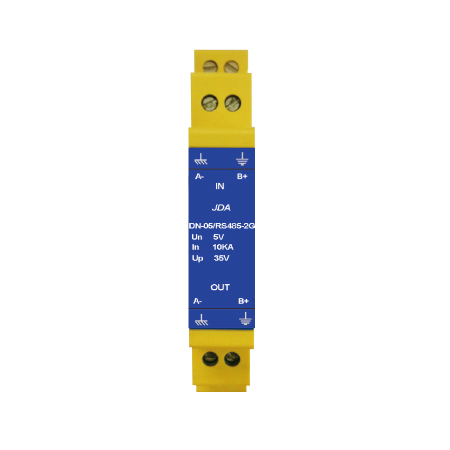

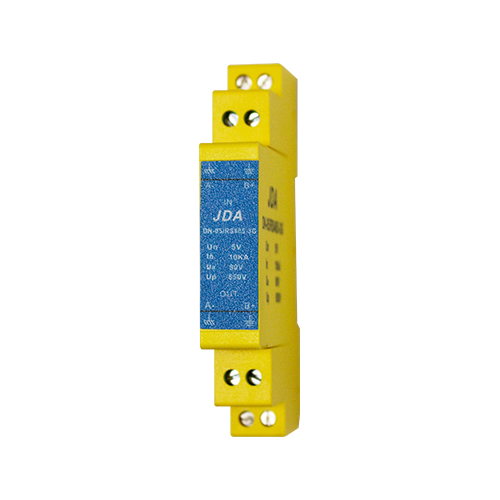

文件名稱DN-05/RS485-2G-B產品說明訊號用突波消除器DN-&&/xxxxx-2G-B xxxxx:RS232,RS422,RS423,RS485,0/4-20mA,0-5V,0-10V A. 型式：配電盤內儀表24V 0/4~20mA S232,RS422,RS423,RS485,0-5V,0-10V，訊號使用，Din rail標準固定安裝。B. 耐突波電流(8/20μs 波形)容量： 10KA In,20KA Im。C. 限制電壓(突波消除能力)：在Cat.B(@3KA)測試條件下≦75V, 8/20us impulse-5KA 35V。

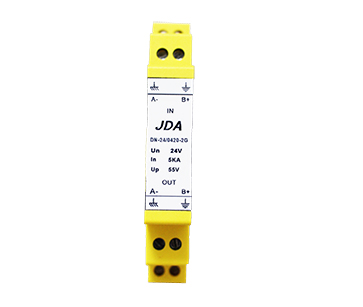

文件名稱JDA-訊號突波保護器 DN-24/0420-2G產品說明插拔模塊，DIN rail安裝，組合波8/20us, In/Imax. 5/10KA， 箝制電壓(保護水平)25V,-95V 溫域-40~+80℃，阻燃UL94-V0

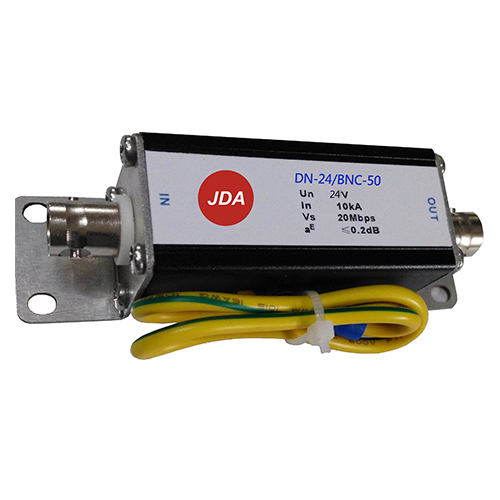

文件名稱DN-24/BNC-50產品說明DN-24/BNC-XX surge arrester is designed for coaxial systems protection against the damaging from surges and spikes caused by lightning and other electrical sources, suitable for use in category location B, C (ANSI/IEEE C62.41) or directly at the upstream near the protected devices. Technical Features ◎ Data network protector in according with UL497b,IEC61643-21:2012; ◎ High discharge capability, total nominal discharge current up to 20kA 8/20; ◎ Two-stage protection circuit; ◎ Limit the transient with gas discharge tubes and transzorb diodes; ◎ Low insertion loss;
文件名稱DN-24/BNC-75產品說明JDA DN-24/BNC-75 surge arrester is designed for coaxial systems protection against the damaging from surges and spikes caused by lightning and other electrical sources, suitable for use in category location B, C (ANSI/IEEE C62.41) or directly at the upstream near the protected devices. Technical Features ◎ Data network protector in according with UL497b,IEC61643-21:2012; ◎ High discharge capability, total nominal discharge current up to 20kA 8/20; ◎ Two-stage protection circuit; ◎ Limit the transient with gas discharge tubes and transzorb diodes; ◎ Low insertion loss;
文件名稱JDA-訊號突波保護器DN-&&/xxxxx-2G產品說明訊號用突波消除器DN-&&/xxxxx-2G xxxxx:RS232,RS422,RS423,RS485,0/4-20mA,0-5V,0-10V A. 型式：配電盤內儀表24V 0/4~20mA S232,RS422,RS423,RS485,0-5V,0-10V，訊號使用，Din rail標準固定安裝。B. 耐突波電流(8/20μs 波形)容量： 10KA In,20KA Im。C. 限制電壓(突波消除能力)：在Cat.B(@3KA)測試條件下≦75V, 8/20us impulse-5KA 35V。

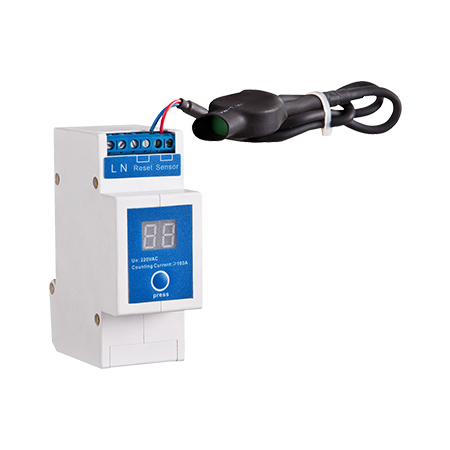

文件名稱訊號雷擊計數器ECL-A-9產品說明感應：>100A，LED指示燈，霍爾感測，DIN rail安裝，計數0~99，電池：7.2V，可充電電池，DIN43880, 2module寬36mm，溫域-20~+60℃，阻燃UL94-V0

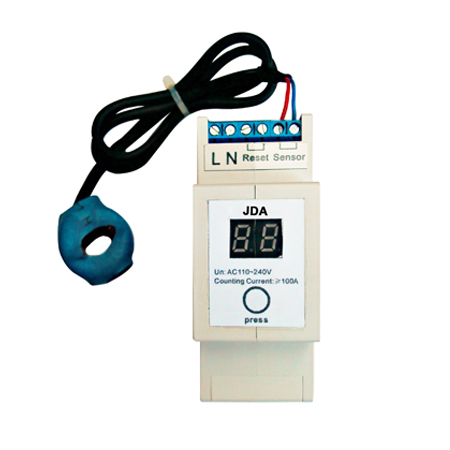

文件名稱訊號雷擊計數器ECL-A-24產品說明感應：>100A，LED指示燈，霍爾感測，DIN rail安裝，計數0~99，電池壽命1年，電池：7.2V，可充電電池，DIN43880, 2module寬36mm，溫域-40~+80℃，阻燃UL94-V0

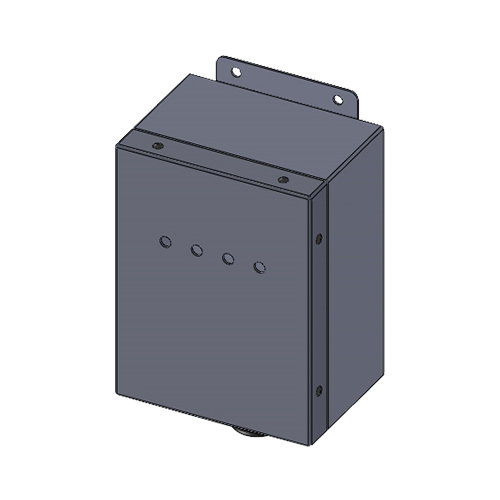

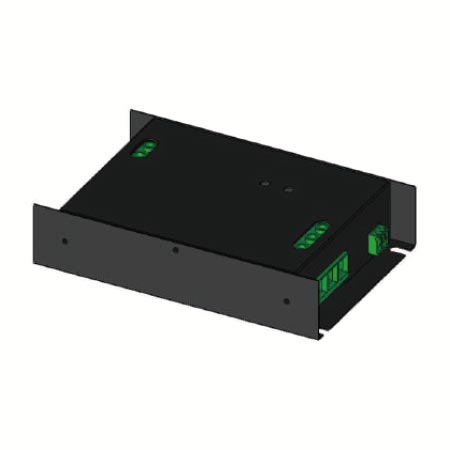

文件名稱交流突波吸收器產品說明Type :ESF&&-x/***-##A-$$,Enclosure type Surge power Filter,Max. surge current (Available from 25KA ~200KA),power system (Single phase/three phase),Input voltage – Uc(180/320/420/550),Current rating - continuous (5A/10A/16A/20A/32A/50A/63A/100A/ 120A… ),3P/PN/3PN: protection mode(L-N,L-PE,N-PE 3MOV/L-N,N-PE 1MOV+1GDT/L-N,N-PE 3MOV+1GDT),{Applications:Secondauy power circuits/Sub-boards,Computer Systems / Medical Systems,Telecommunication Systems / Recti_ers,All sensitive Electronic Equipment,Process and Control Systems}
