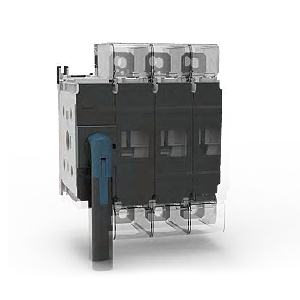

ファイル名JDA SANTON DC switch used in inverter performance製品説明JDA SANTON DC switch used in inverter performance

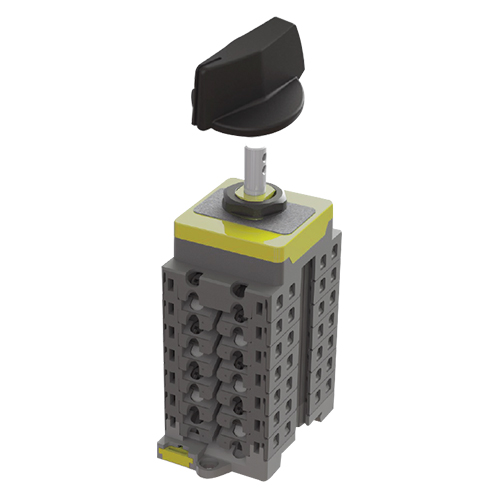

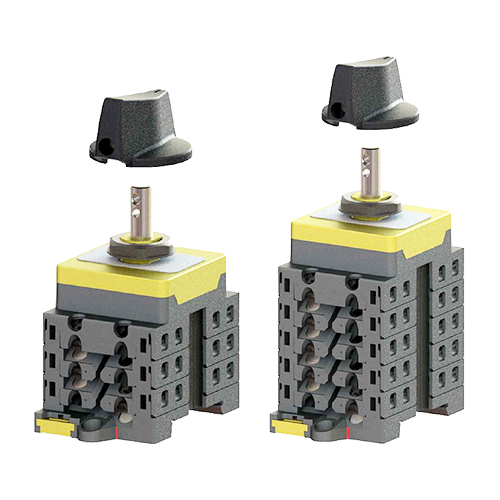

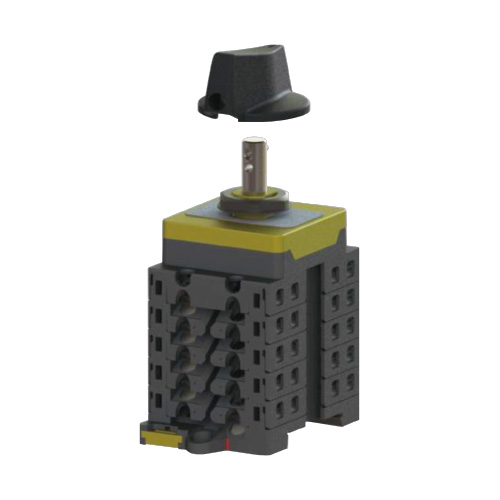

ファイル名XBHP+02,0410/2製品説明Rated insulation voltage (Ui) : 1200V Conventional free air thermal current (Ith): 50A DC-PV1 Up to 8 POLE

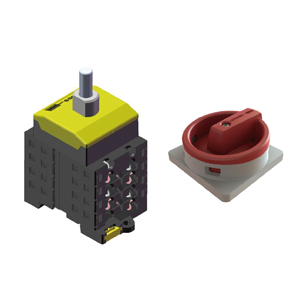

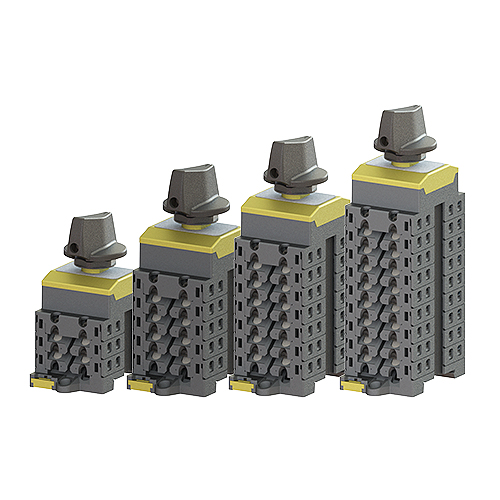

ファイル名XC+150.20,40,60,80DL2E~8E-D製品説明直流隔離開關DC switch,XC+150.20DL2E-D-D,XC+150.20DL4E-D-D,XC+150.20DL6E-D-D,XC+150.20DL8E-D-D,1500Vdc,20A
ファイル名XB1411-2-D 製品説明XB switch characteristic 2 pole= XB3210-2 3 pole =XB3310-2 4 pole= XB3410-2 the difference between XA and XB比較 *In size the XB switch is 5,6 mm shorter due to the different type of mechanism housing of 4,8 mm ( XA is 28,6 mm / XB is 23,8 mm ) The size of the decks is the same *In ratings the XB offers 1000 V- 16 A same is XA 850 V - 20 A same as XA 800 V - 25 A same as XA 650 V -30 A XA is 32 A 450 V -45 A XA has no rating at 450 V so is also 32 A *The blocking position for XB is E blocking ( On at 03:00 hrs and Off at 12:00 hrs ) the blocking position for XA is H blocking ( On at 09:00 hrs and Off at 12:00 hrs ) can easy solve this by changing the print on the inverter 90 degrees or change the hole mounting slot 90 degrees versus current solution The XB is fully IEC 60947-1&3 DC 21 B certified at + 70 C and at - 40 C See enclosed test report

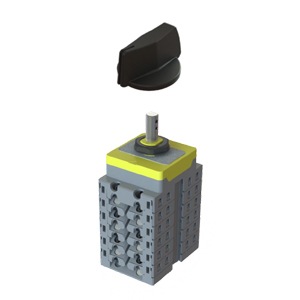

ファイル名XB3210-2-D製品説明XB switch characteristic 2 pole= XB3210-2 3 pole =XB3310-2 4 pole= XB3410-2 the difference between XA and XB比較 *In size the XB switch is 5,6 mm shorter due to the different type of mechanism housing of 4,8 mm ( XA is 28,6 mm / XB is 23,8 mm ) The size of the decks is the same *In ratings the XB offers 1000 V- 16 A same is XA 850 V - 20 A same as XA 800 V - 25 A same as XA 650 V -30 A XA is 32 A 450 V -45 A XA has no rating at 450 V so is also 32 A *The blocking position for XB is E blocking ( On at 03:00 hrs and Off at 12:00 hrs ) the blocking position for XA is H blocking ( On at 09:00 hrs and Off at 12:00 hrs ) can easy solve this by changing the print on the inverter 90 degrees or change the hole mounting slot 90 degrees versus current solution The XB is fully IEC 60947-1&3 DC 21 B certified at + 70 C and at - 40 C See enclosed test report
ファイル名XB3310-2-D製品説明XB switch characteristic 2 pole= XB3210-2 3 pole =XB3310-2 4 pole= XB3410-2 the difference between XA and XB比較 *In size the XB switch is 5,6 mm shorter due to the different type of mechanism housing of 4,8 mm ( XA is 28,6 mm / XB is 23,8 mm ) The size of the decks is the same *In ratings the XB offers 1000 V- 16 A same is XA 850 V - 20 A same as XA 800 V - 25 A same as XA 650 V -30 A XA is 32 A 450 V -45 A XA has no rating at 450 V so is also 32 A *The blocking position for XB is E blocking ( On at 03:00 hrs and Off at 12:00 hrs ) the blocking position for XA is H blocking ( On at 09:00 hrs and Off at 12:00 hrs ) can easy solve this by changing the print on the inverter 90 degrees or change the hole mounting slot 90 degrees versus current solution The XB is fully IEC 60947-1&3 DC 21 B certified at + 70 C and at - 40 C See enclosed test report
ファイル名XB3410-2-D製品説明XB switch characteristic 2 pole= XB3210-2 3 pole =XB3310-2 4 pole= XB3410-2 the difference between XA and XB比較 *In size the XB switch is 5,6 mm shorter due to the different type of mechanism housing of 4,8 mm ( XA is 28,6 mm / XB is 23,8 mm ) The size of the decks is the same *In ratings the XB offers 1000 V- 16 A same is XA 850 V - 20 A same as XA 800 V - 25 A same as XA 650 V -30 A XA is 32 A 450 V -45 A XA has no rating at 450 V so is also 32 A *The blocking position for XB is E blocking ( On at 03:00 hrs and Off at 12:00 hrs ) the blocking position for XA is H blocking ( On at 09:00 hrs and Off at 12:00 hrs ) can easy solve this by changing the print on the inverter 90 degrees or change the hole mounting slot 90 degrees versus current solution The XB is fully IEC 60947-1&3 DC 21 B certified at + 70 C and at - 40 C See enclosed test report
ファイル名XB3610-2-D製品説明XB switch characteristic 2 pole= XB3210-2 3 pole =XB3310-2 4 pole= XB3410-2 the difference between XA and XB比較 *In size the XB switch is 5,6 mm shorter due to the different type of mechanism housing of 4,8 mm ( XA is 28,6 mm / XB is 23,8 mm ) The size of the decks is the same *In ratings the XB offers 1000 V- 16 A same is XA 850 V - 20 A same as XA 800 V - 25 A same as XA 650 V -30 A XA is 32 A 450 V -45 A XA has no rating at 450 V so is also 32 A *The blocking position for XB is E blocking ( On at 03:00 hrs and Off at 12:00 hrs ) the blocking position for XA is H blocking ( On at 09:00 hrs and Off at 12:00 hrs ) can easy solve this by changing the print on the inverter 90 degrees or change the hole mounting slot 90 degrees versus current solution The XB is fully IEC 60947-1&3 DC 21 B certified at + 70 C and at - 40 C See enclosed test report
